HidPipeTransport Struct Reference

Struct containing the HidPipeTransport information. More...

#include <HidPipeTransport.h>

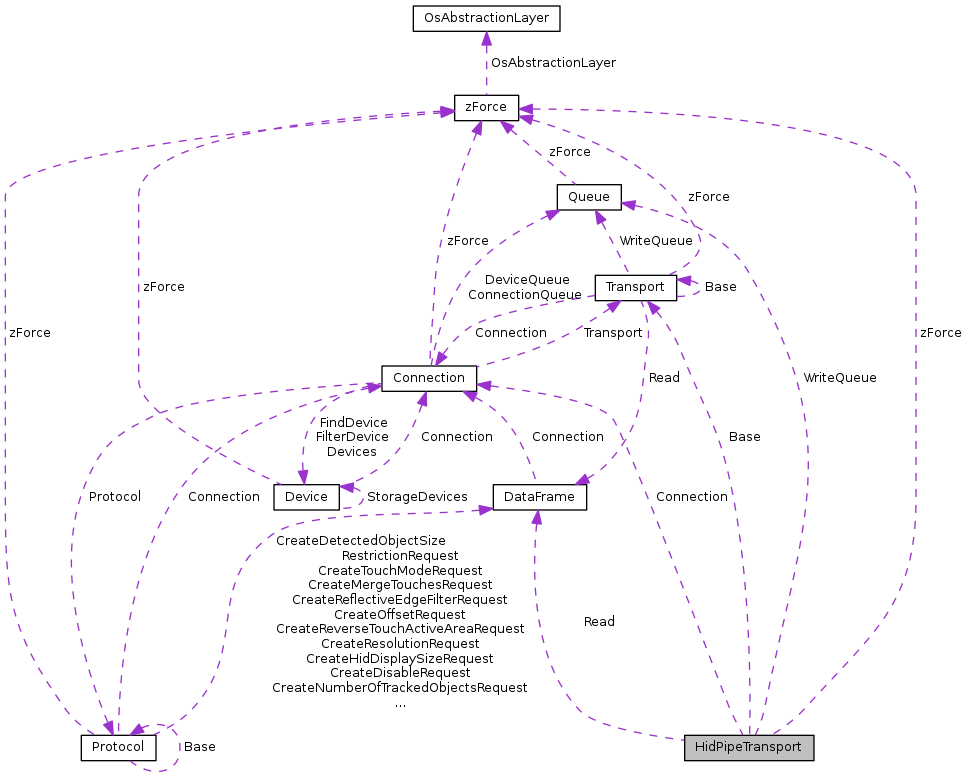

Collaboration diagram for HidPipeTransport:

Public Attributes
Transport *	Base
	Base pointer to the immediate base Transport class. The inheritance is nested so for example WinSerTransport inherits from SerTransport which inherits from Transport. If Base is a NULL pointer then it is the base Transport class itself.
Connection *	Connection
	Each Transport is linked to one Connection.
zForce *	zForce
	A pointer to the global zForce instance.
char	ConnectionString [TRANSPORTPROTOCOL_MaxOptionParameterLength+1]
	Connection string. This string contain the type of transport and the option parameters on the following form: type://port=portOption e.g "serial://port=/dev/ttyACM0".
volatile bool	Terminate
	A flag indicating if the Transport Read and Write threads should terminate (true) or not (false).
Queue *	WriteQueue
	A pointer to the Write queue used by EnqueueDataFrame.
bool	IsOpen
	A flag indicating if the Transport is open (true) or not (false).
bool	Opening
	Transport is in Opening phase.
zForceThread *	WriteThread
	Write Thread pointer.
zForceThread *	ReadThread
	Read Thread pointer.
volatile ReadWriteThreadStatus	WriteThreadStatus
	Thread is active.
volatile ReadWriteThreadStatus	ReadThreadStatus
	Thread is active.
bool(*	Open )(Transport *self)
	Open the generic Transport. More...
bool(*	Close )(Transport *self)
	Close the generic Transport. More...
DataFrame *(*	Read )(Transport *self)
	Function pointer to Transport's Read. More...
bool(*	Write )(Transport *self, DataFrame *payload)
	Function pointer to Transport's Write. More...
uint64_t(*	GetTimeOutValue )(Transport *self)
	Function pointer to Transport's GetTimeOutValue. More...
bool(*	EnqueueDataFrame )(Transport *self, DataFrame *dataFrame)
	Enqueue given dataframe. More...
void(*	Destructor )(Transport *self)
	Destructor frees all the resources that have been allocated. More...
void(*	TransportLost )(Transport *self)
	Signals the transport that it has been lost and acts accordingly. More...
bool	StopCommunication
	Boolean value that indicates that there is no longer any communication. Internal use only.
void *	Private
	Private members of HidPipeTransport.

Detailed Description

Struct containing the HidPipeTransport information.

HidPipeTransport contains the Transport base, a pointer to the base Transport class.

Member Data Documentation

bool( * HidPipeTransport::Close) (Transport *self)

Close the generic Transport.

On failure, errno is set.

• ENOTOPENED - Transport is not open.
• ECLOSEFAILED - Closing file descriptor failed.
• EBADTHREAD - Bad thread pointer, problem with exiting thread.

Parameters

self	Pointer to the struct itself.

Returns

True if successful, false if not, and errno set accordingly.

void( * HidPipeTransport::Destructor) (Transport *self)

Destructor frees all the resources that have been allocated.

Parameters

self	Pointer to the struct itself.

bool( * HidPipeTransport::EnqueueDataFrame) (Transport *self, DataFrame *dataFrame)

Enqueue given dataframe.

On failure, errno is set.

• EENQUEUEFAILED - Generic enqueue error.
• EOUTOFMEMORY - Memory allocation failed.
• EBADQUEUE - Bad Queue pointer.
• ENOTOPENED - Transport is not open.

Parameters

self	Pointer to the struct itself.
dataFrame	the data frame to be put in the Write queue

Returns

True if successful, false if not, and errno set accordingly.

uint64_t( * HidPipeTransport::GetTimeOutValue) (Transport *self)

Function pointer to Transport's GetTimeOutValue.

Parameters

self	Pointer to the struct itself.

Returns

the Transport specific timeout value.

bool( * HidPipeTransport::Open) (Transport *self)

Open the generic Transport.

This function opens the Transport specified by the ConnectionString. If the ConnectionString contains a port as an options string that port will be used. Open also sets up the Read and Write.

On failure, errno is set.

• ETHREADCREATEFAILED - Thread creation failed.
• EOUTOFMEMORY - Out of memory.
• EBADTHREAD - Bad thread pointer.
• EQUEUECREATIONFAILED - Queue creation failed.
• EOPENFAILED - Could not open file.
• ENOPORTENTRY - No such file or directory.
• EALREADYOPEN - Specific transport is already opened.
• ENODEVICEENTRY - No device with that name.

Parameters

self	Pointer to the struct itself.

Returns

True if successful, false if not, and errno set accordingly.

DataFrame*( * HidPipeTransport::Read) (Transport *self)

Function pointer to Transport's Read.

On failure, errno is set.

• ENOTOPENED - Transport is not open.
• EREADFAILED - Read failed.
• EOUTOFMEMORY - Memory allocation failed.

Parameters

self	Pointer to the struct itself.

Returns

A pointer to the read data frame, NULL either if no data frames exist or an error has occurred. Upon error see errno.

void( * HidPipeTransport::TransportLost) (Transport *self)

Signals the transport that it has been lost and acts accordingly.

Parameters

self	Pointer to the struct itself.

bool( * HidPipeTransport::Write) (Transport *self, DataFrame *payload)

Function pointer to Transport's Write.

On failure, errno is set.

• EWRITEFAILED - Write failed.
• EPARTIALWRITE - Not all bytes written.
• ENOTOPENED - Transport is not open.

Parameters

self	Pointer to the struct itself.
payload	The payload pointer.

Returns

True if success, false if failed. See errno.

---

The documentation for this struct was generated from the following file:

• HidPipeTransport.h
